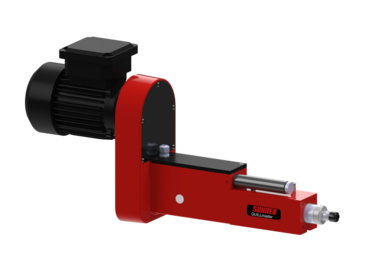

Technical specifications BEM 3 / QUILLmaster

Machining unit with integrated pneumatic feed and a drilling capacity of Ø 3 mm.



Total stroke [mm]
60
Working stroke [mm]
25
Max. Drilling capacity (HSS/St-60) [mm]
3
Feed force [N]
380
Speed range at 50Hz [min-1]
940 - 10270
Operating pressure [bar]
5 - 7
Max. Permissible speed [min-1]
18000
Motor power at 50Hz [kW]
0.18
Tool holder
ER11
Weight / color
9 kg / RAL 5012
Concentricity
0.02
toothed belt drive
AT3
Normal voltage at 50Hz [V]
230 / 400
