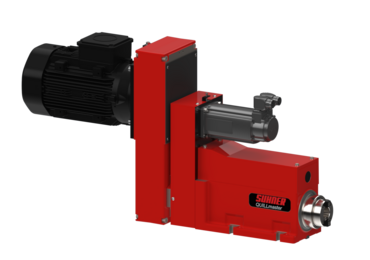

Technical specifications BEA 25 CNC / QUILLmaster

Autonomous and freely programmable quill unit with servo-controlled feed axis, incl. control system.



Total stroke [mm]
115
Working stroke [mm]
115
Max. Drilling capacity (HSS/St-60) [mm]
25
Feed force [N]
3400
Speed range at 50Hz [min-1]
540 - 5800
Max. Permissible speed [min-1]
8000
Motor power at 50Hz [kW]
1.5 / 2.2 / 3.0
Tool holder
ISO30 / HSK50
Max. Threading performance (HSS/St-60)
M20
Transmittable torque [Nm]
80
Weight / color
58 kg / RAL 5012
Concentricity
0.01
Normal voltage at 50Hz [V]
230 / 460
