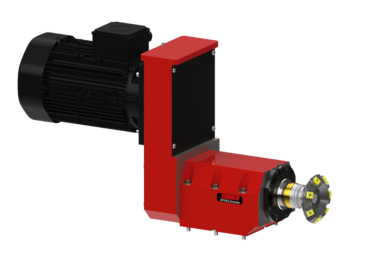

Technical specifications MAX 200 / SPINDLEmaster
Precision machining spindle for highest demands on concentricity, speed and performance.
Max. Drilling capacity (HSS/St-60) [mm]
80
Speed range at 50Hz [min-1]
360 - 4800
Max. Permissible speed [min-1]
4800
Motor power at 50Hz [kW]
15 / 18.5 / 22 / 30
Tool holder
ISO50 / HSK100
Transmittable torque [Nm]
2000
Weight / color
w/o motor 227 kg / RAL 5012
Concentricity
0.01
toothed belt drive
X
grease lubrication
X
Preloaded bearings
X
Normal voltage at 50Hz [V]
230 / 460
