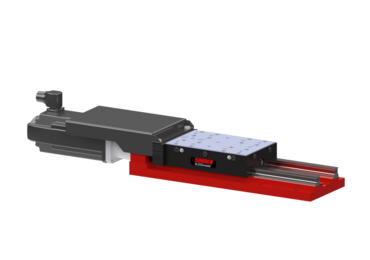

Datos técnicos UA 15 CNC / SLIDEmaster

Unidad de deslizamiento robusta y precisa con servoaccionamiento y husillo de bola. Para montar la unidad de husillo BEX 15.



Carrera total [mm]
150 / 300
Carrera de trabajo [mm]
150 / 300
Fuerza de alimentación [N]
2500
Fuerza de golpe de retorno [N]
2500
Peso / Color
25 kg / RAL 5012
El paso del husillo de bolas
5 mm / Ø 16 mm
La precisión del husillo de bolas
23 µ / 300 mm
